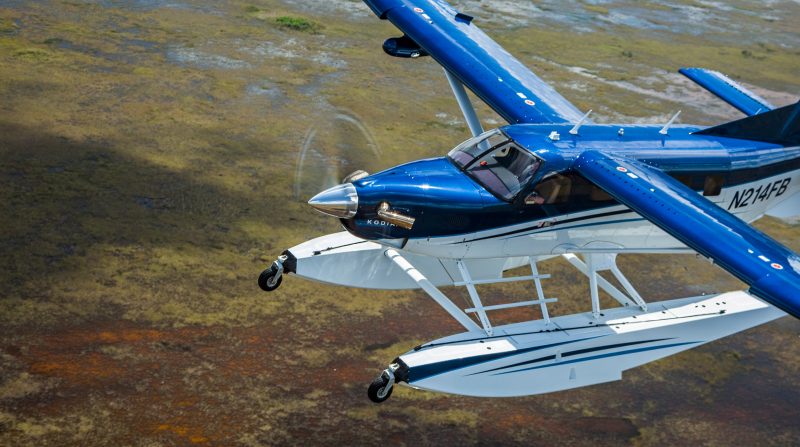

6650 hero

6650
Destinations
Unlimited

Where can Aerocet take you?

6650 hull
6650 landing gear

Main Gear

Custom Designed Gearbox

  • Minimizes displacement for improved floatation.
  • Watertight seamless design, and easy access to hardware
  • Easy-to-clean and service, ease of replacements.

Oleo Shock System

  • Trailing arm link provides a no-bounce smooth ride.
  • Metering pin tailored toward comfort during taxi, yet able to handle hard landings.
  • Pressure adjustable to match aircraft gross weight & built-in prevention of water intrusion
  • Cost effective, easy to find and replace “off-the-shelf” seals and wiper rings.
6650 nose gear

Nose Gear

Sliding, Retractable Gear

  • Utilizes a no-maintenance composite spring that eliminates soft forward diving in crosswinds or under braking.
  • No wheel well, which provides maximum displacement efficiency.
  • Aluminum bronze slide bushings designed to handle ultimate loads without damage.
  • Optimal nose spring angle to reduce shimmy potential.

Specifications

Compatibility
Quest KODIAK 100
Buoyancy
6666 lbs / 3024 kg
Maximum Floatation
7406 lbs / 3359 kg
Weight
1204 lbs*/546 kg*

* Without optional items

6650 technology

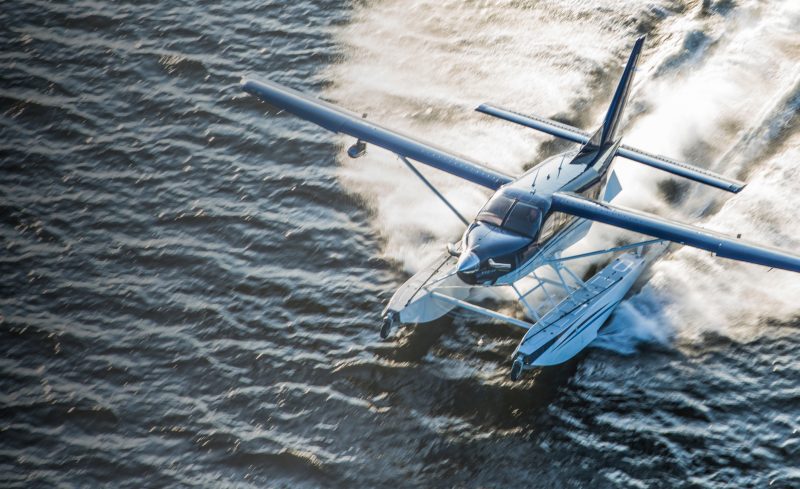

Carbon Fiber Technology

Take a few more passengers thanks to our Carbon Fiber construction. Durable, easy to maintain, and a joy to fly.

3400 gear advisory

Gear Advisory

Gear Advisory

  • Audible announcement for gear positions and “check gear” conditions
  • Hydraulic pump running indicator
  • Illuminated indicators for each gear wheel and each position as well as "Test" feature
  • Backlit display for easy reading with dimmer adjustment
6650 pump

Pump

Hydraulic Pump System

  • Built in pressure relief guards against over pressure from thermal or hand pump inputs with low average pressure (500 psi) reducing overall maintenance.
  • Visible reservoir built into hydraulic power pack for easy fluid level reading
  • Internal filters to guard against debris in hydraulic system reducing wear
6650 compartments

Compartments

  • Nine Watertight Compartments
  • Large access panels with integrated pump-outs with stainless steel hardware.
  • Six storage lockers, four forward, two stern, with large access doors and optional floorboards for flat storage.
Float plane pulled up on shore and people around a camp fire.

Start your own adventure
